Shannon Warfield - 1936 Ford Coupe

Vehicle

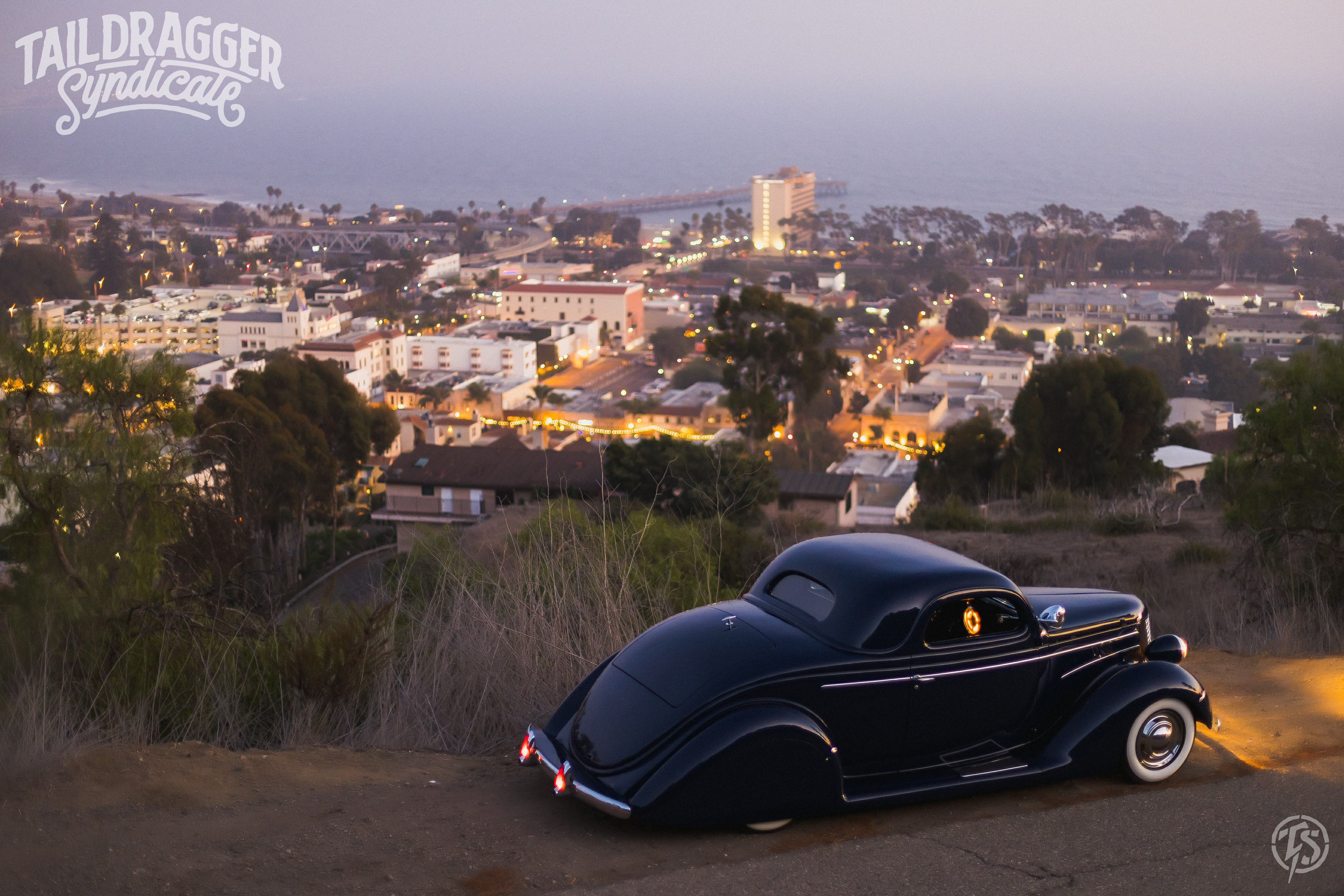

1936 Ford 3 Window Coupe
Owner
Shannon Warfield of Kamuela, Hawaii
Built By
JG Design & Fabrication of Ventura, CA
Body
3 Window Coupe modified with a 3 1/2” Chop
Shaved taillights, rumble seat step, fuel filler neck, & front fender grilles
Flush mounted custom fabricated fender skirts
One off belt-line chrome trim
Rear & Door Window - Sectioned / Chopped 1 1/2”
Fenders were modified to achieve smooth flow
Custom fabricated pivoting hood side openings with built ECU to open hood sides with a thermal switch relay to linear servos
Stock 1936 Ford Grille opening modified to split grille - 1/2” aluminum ribs cut with water jet
Stock running boards smoothed - step pad hammered into place with bead around to secure placement
Stock 1936 Ford Headlights
1940 Ford Pickup bumpers front & rear
1949 Mercury Rear Bumper Guard flipped upside down with custom taillights & 2” exhaust pencil tip
3D Design Work by Matt of Lightly Engineered
Custom Splash pan to hide brackets
Appleton 552 Spotlights
Metalwork by JG Design & Fabrication. Ventura, CA
Paint
Custom mixed blue House of Kolor base coat / clear coat paint
Bodywork & Paintwork by Saticoy Auto Body. Ventura, CA
Interior
Brown Relic Leather upholstery
Upholstery by Quality Auto Upholstery. Ventura, CA
Original 1936 Ford dash extended 2” to transition into “Big Ole Gauge” by Classic Instruments
Additional glove box door added to drivers side for that Zephyr dash look
Custom Fabricated waterfall from bottom of center dash to the floor
Ididit Retro Series steering column
X-Mat Sound Deadening Insulation
Fully functional rumble seat
1942 Lincoln Zephyr Steering Wheel - Resized to 16” with red lucite wheel & custom horn button with JG Design & Fab Badge embossed in
Steering Wheel by Kris from Steering Wheel Kris. North Hollywood, CA
Chassis
Custom CNC Cut Back Half Frame with Mustang II front clip
Manual rack & pinion steering, JG Design & Fab.
Speedway Master Cylinder / Master Cylinder Mount / Brake Pedal Pivot
Chassis Fabrication by JG Design & Fabrication. Ventura, CA
Suspension
Air-Lift Suspension Kit with Universal Air Bags - AirHouse2 & Viair Compressors
Air Suspension Components hidden behind dash waterfall
Built Ford 9” rear end with limited slip - 3.77 posi-traction
Triangulated 4 link kit with load bearing link with air bag & shock mounts
Suspension by JG Design & Fabrication. Ventura, CA
Brakes
Front: Speedway disc brake kit - Rear: Speedway drum brake kit
Wheels/Tires
15” x 6" Wheel Vintiques black steel wheels with 15” Chrome hubcaps wrapped in 600-15 Coker Bias-ply whitewall tires
Drivetrain
GM Small Block 350 v8 engine; Black paint color
Polished Aluminum Finned valve covers & air cleaner
Edelbrock Aluminimum Intake 600cfm carburetor
Edelbrock 4 barrel intake manifold
MSD Distributor & Coils
Transmission
GM TH350 automatic transmission
One-piece steel driveshaft
Other
Replacement Fuel Tank from Tanks Inc
2” true dual exhaust with dual chamber long Magnaflow mufflers by Performance Exhaust. Ventura, CA
Chrome plating by The Polishing Shop. Oxnard, CA
EZ Wire 12 Circuit Wiring Harness
Wiring by JG Design & Fabrication. Ventura, CA
